SPECIFICATIONS:

Model Number: 12V 40Ah 60Ah 80Ah 100Ah 120Ah 200Ah

Nominal Capacity: 40Ah 60Ah 80Ah 100Ah 120Ah 200Ah

Material: Lithium Iron Phosphate

Capacity: 40ah 60ah 80ah 100ah 120ah 200ah

Voltage: 12V

Maximum charging current: 0.5C

Cycle Life: More than 6000 Times

Certificate: CE,ROHS,MSDS,UN38.3,UL

Working temperature: -20 ~ 60 ℃

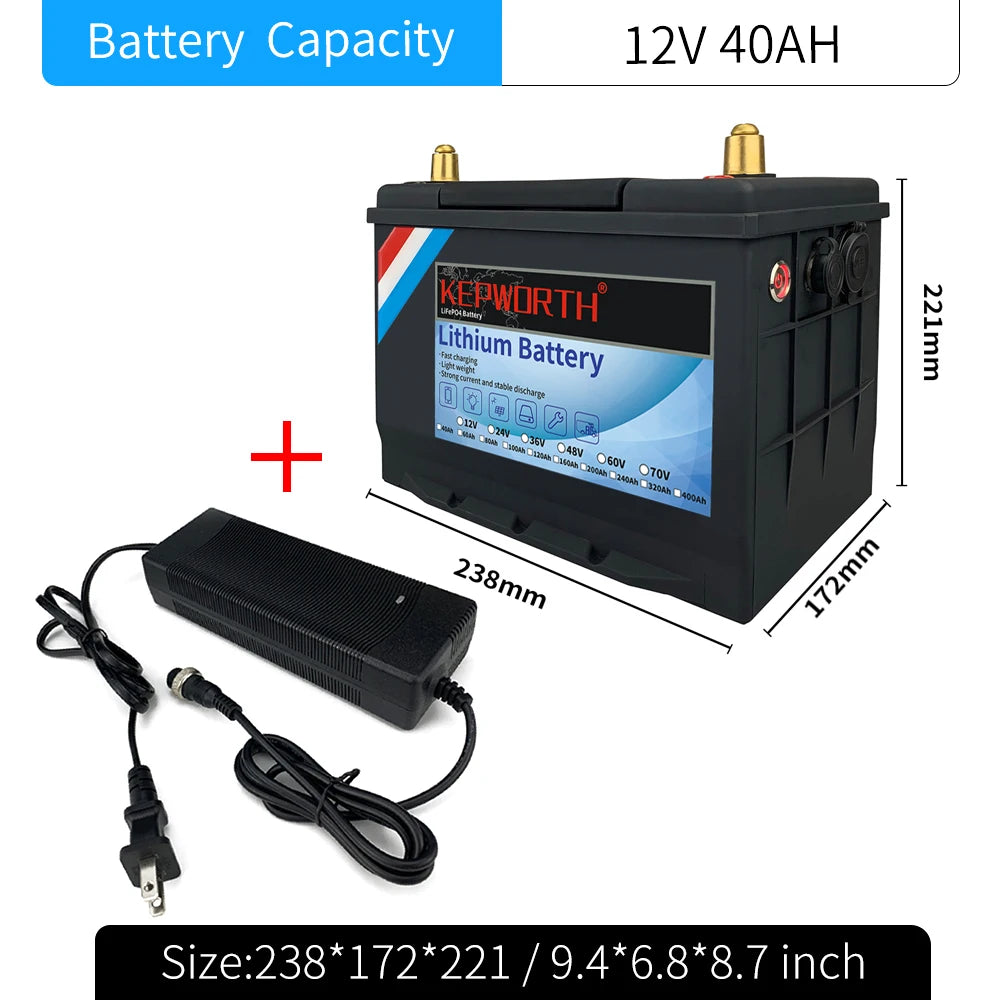

12V 40Ah Size and Weight: 238*172*221mm/3.9kg

12V 60Ah Size and Weight: 238*172*221mm/5.4kg

12V 80Ah Size and Weight: 260*172*224mm/7.9kg

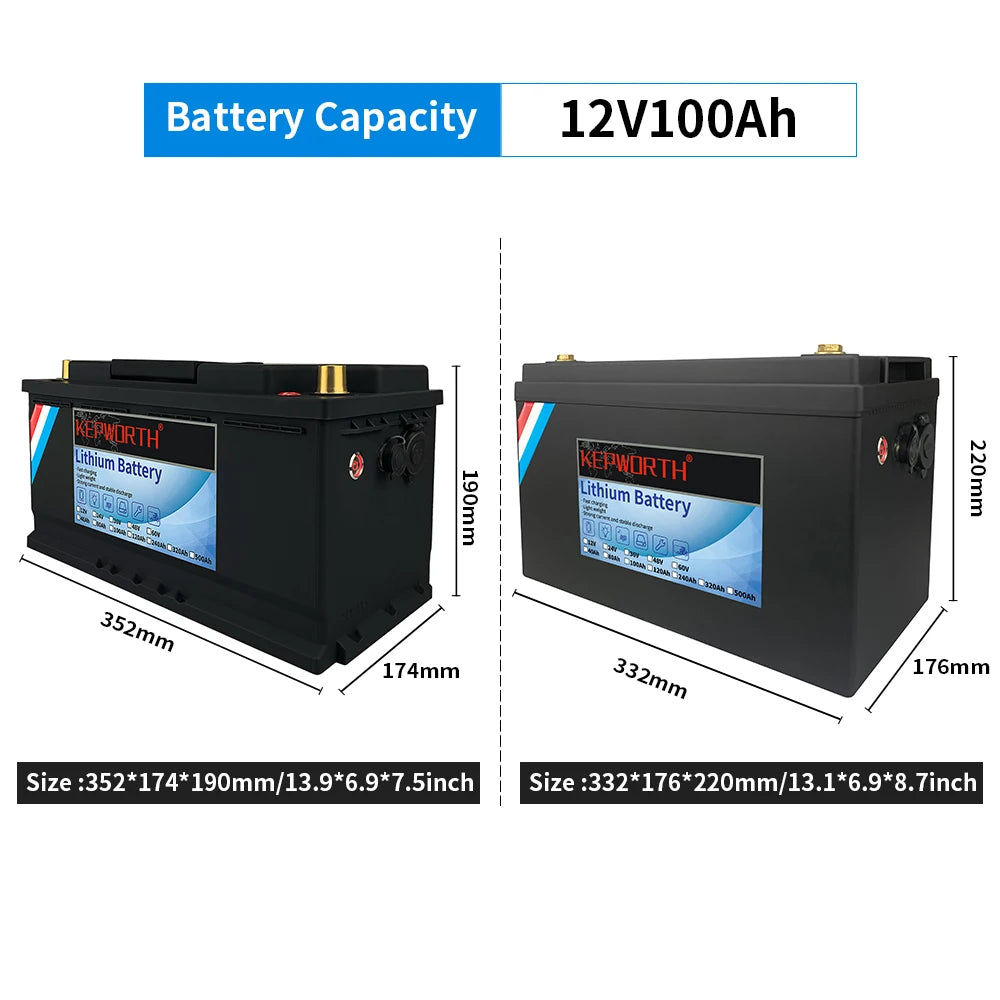

12V 100Ah Size and Weight: 352*174*190mm/9.2kg

12V 100Ah Size and Weight: 332*176*220mm/9.7kg

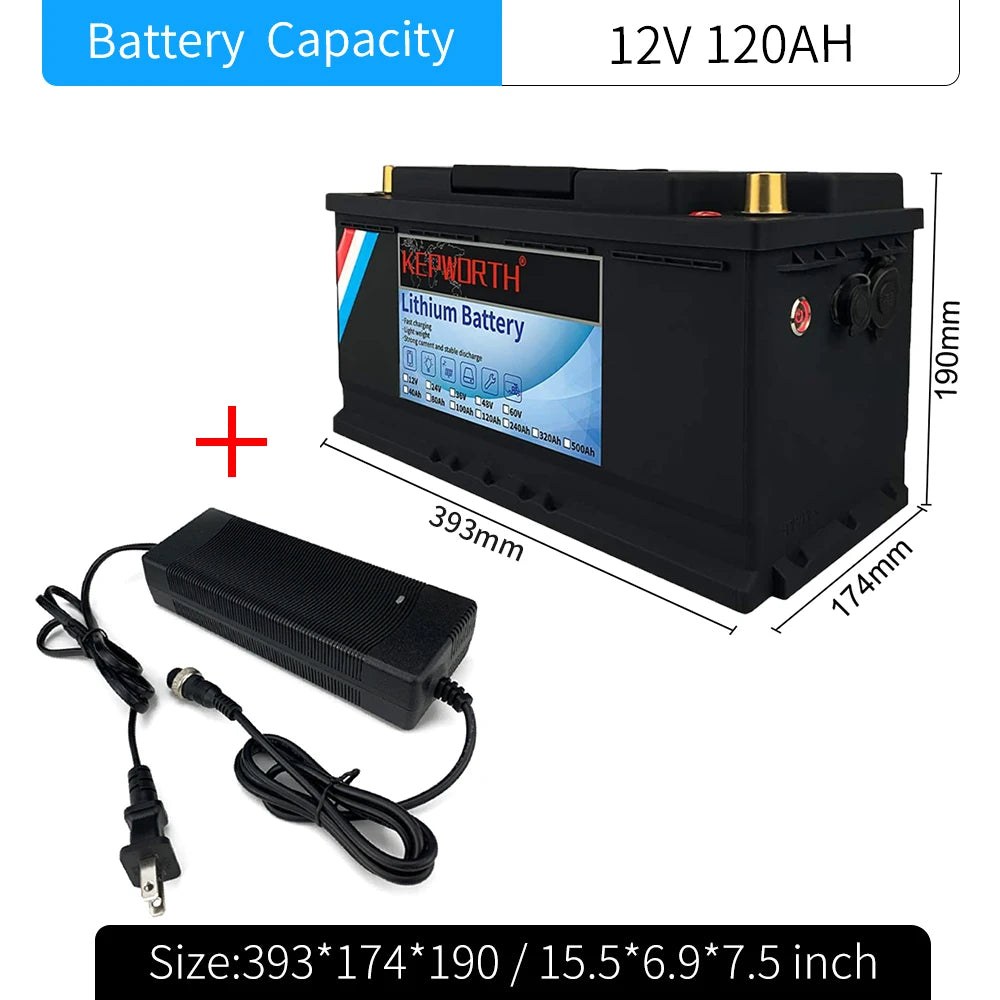

12V 120Ah Size and Weight: 393*174*190mm/12.5kg

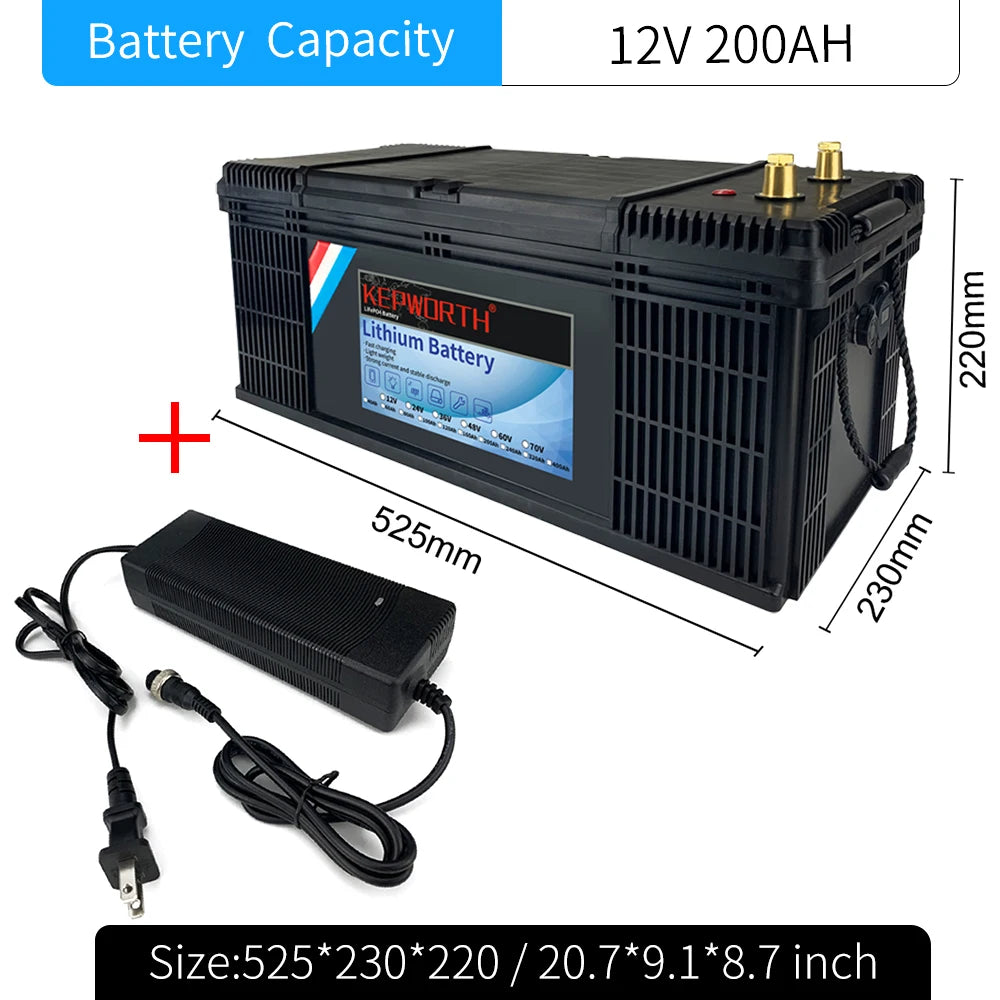

12V 200Ah Size and Weight: 525*230*220mm/19.5kg

LiFePO4 Energy Storage Battery

12V 40 60 80 100 100 120 200Ah Lithium Iron Phosphate Battery Deep Cycle LiFePO4 Batteries Built-in BMS Life More Than 6000 Cycles For RV Campers Golf Cart Off-Road Off-grid Solar Storage Wind energy

Used For:

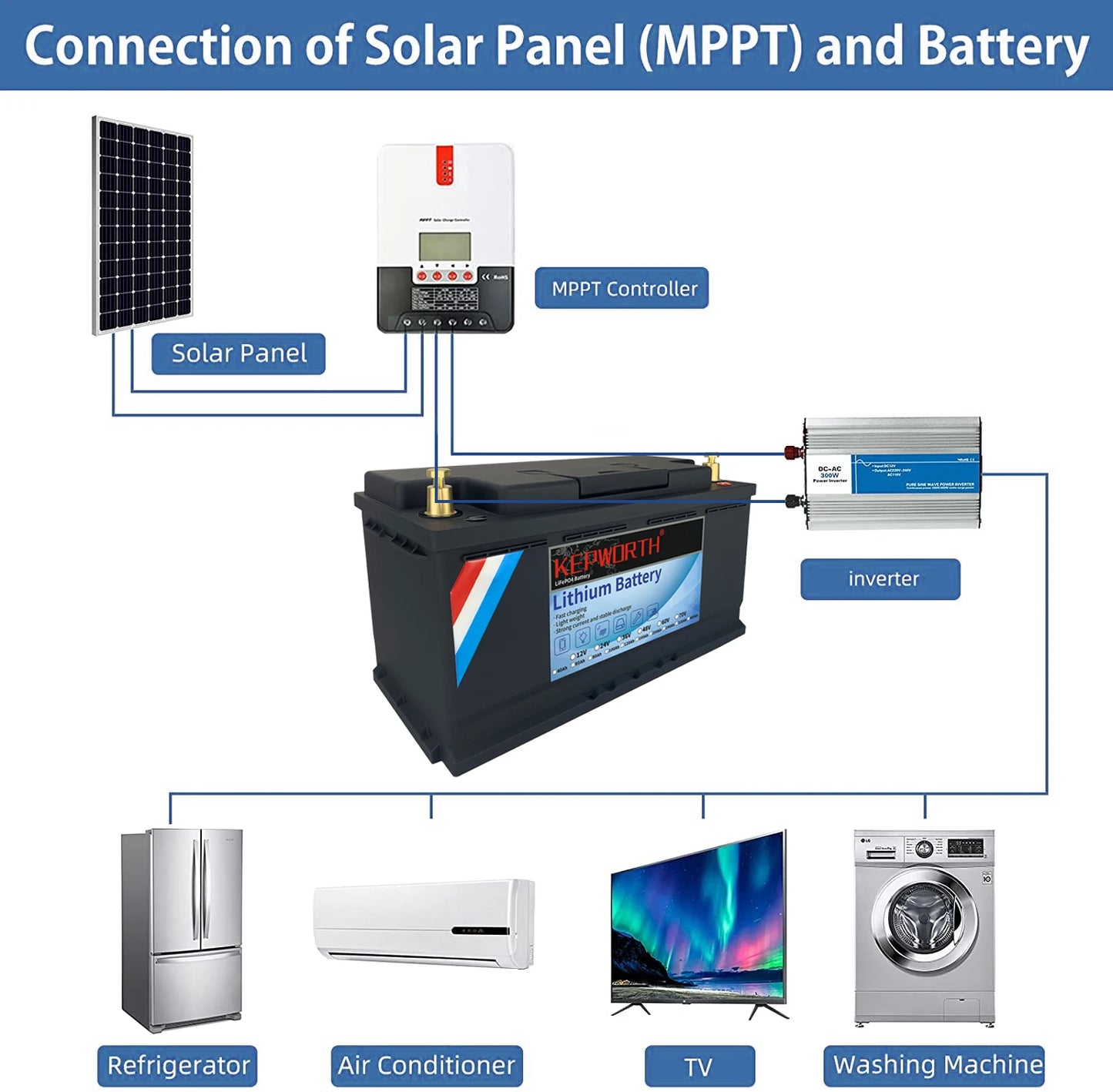

Solar Panel Power Bank System, Solar VRLA 12V 24V 36V 48V 60V Off-grid Applications, Trolling Motor, Mobility Scooter Wheelchair, Electronics, Wheelchair, Scooter, Industrial and Medical Equipment, Golf Carts, Hunting, Lawn and Garden Tools, Portable Tools, Toys and Hobby, Emergency Lighting, Leisure, RV House, Security and more

About this item:

Capacity: 40AH 60AH 80AH 100Ah 120AH 200AH

Battery Material: Lithium Iron Phosphate(LiFePO4) battery

Nominal voltage: 12.8V

Rated voltage: 12V

Max Protection Voltage: 14.6V

End Voltage: 10V

Instantaneous discharge current:40Ah≥80A, 60AH≥120AH 80Ah≥160A, 100A≥200A, 120A≥240A, 200AH≥400AH

Continuous discharge current:≥40A 60A 80A100A 120A 200A
