SPECIFICATIONS

Model Number: LiFePO4 Battery Pack

Certification: CE

Certification: RoHS

Size: 53cm*23.7cm*21.7cm

Application: Scooter, Street Bike,Solar

Weight: 13-45KG

Nominal Capacity: 100Ah-300Ah

Type: Li-Ion

Voltage: 12.8V-51.2V

Cycle Time: >4000 times

Warranty: 5 Years

Support to OEM: Yes

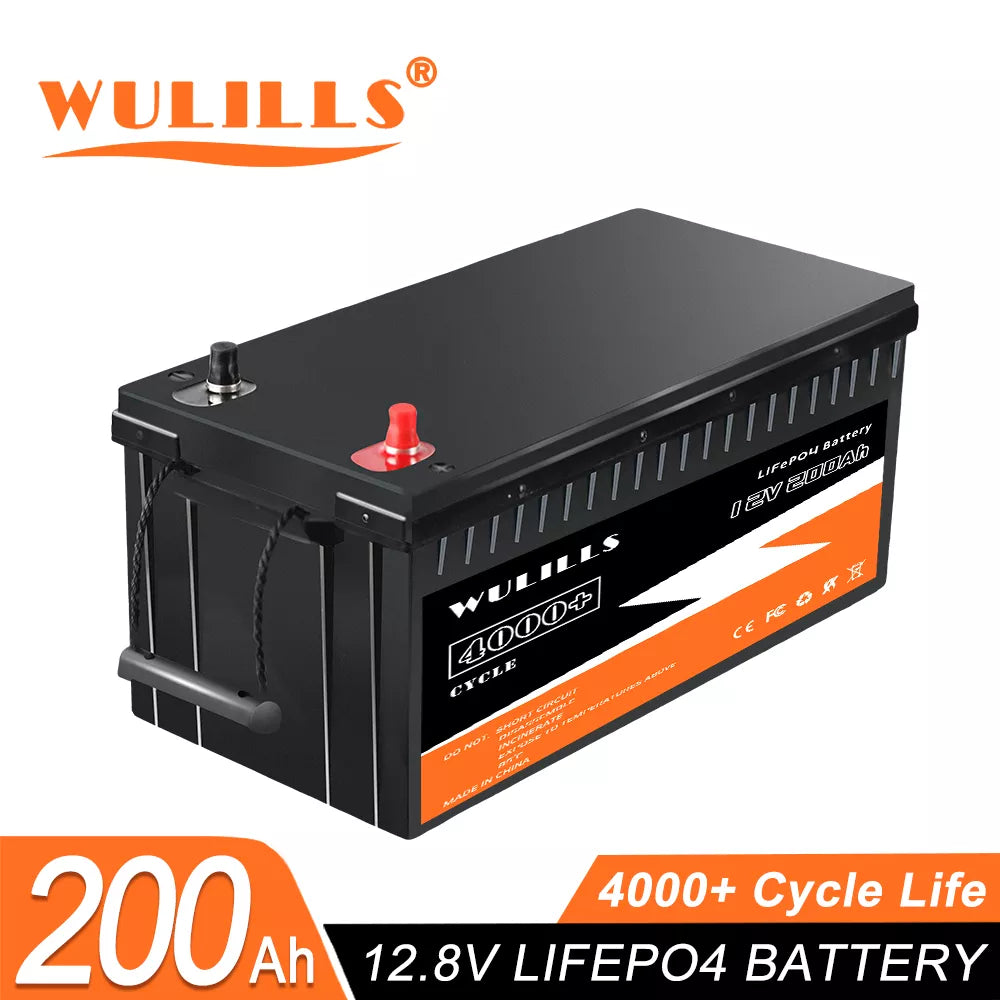

Features 1: 12V 100Ah 200Ah 300Ah Lifepo4 battery

Features 2: 12V 24V 48V LIFePO4 Battery With Built-in BMMS

Features 3: Lifepo4 Batteries for RV Solar

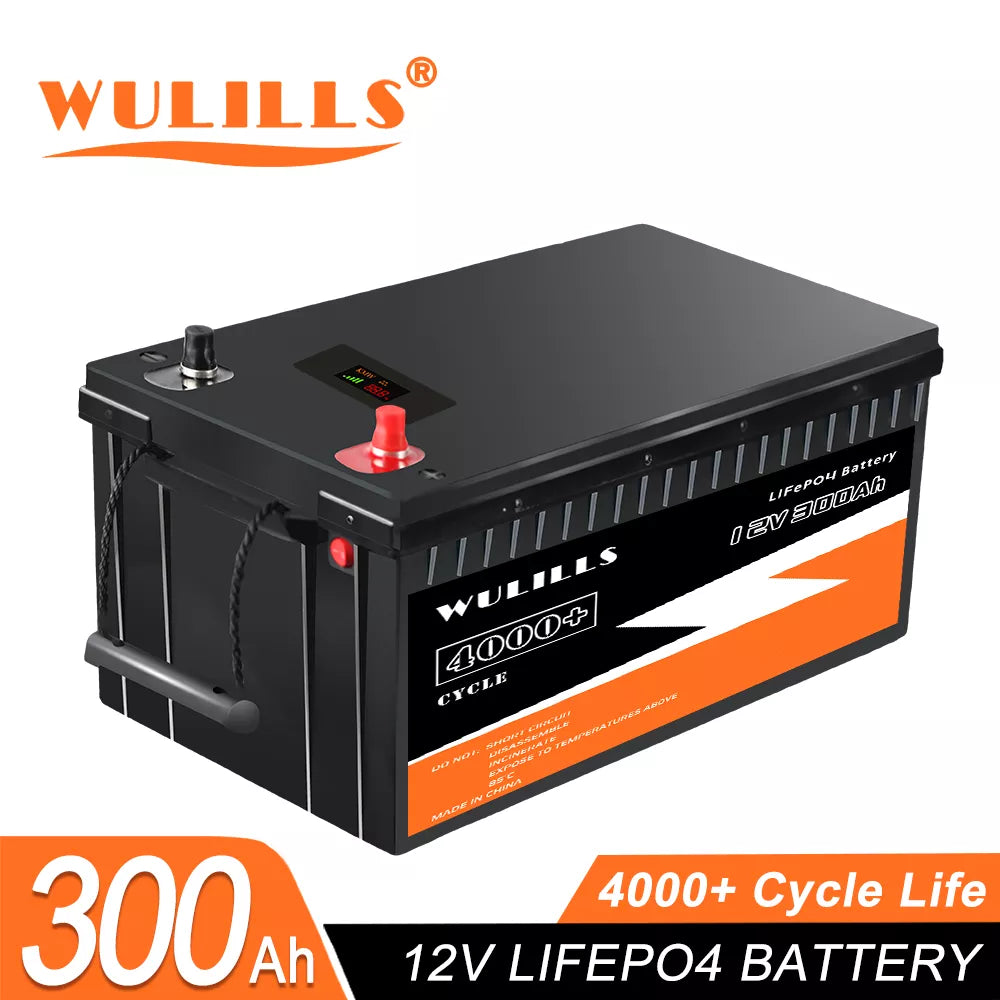

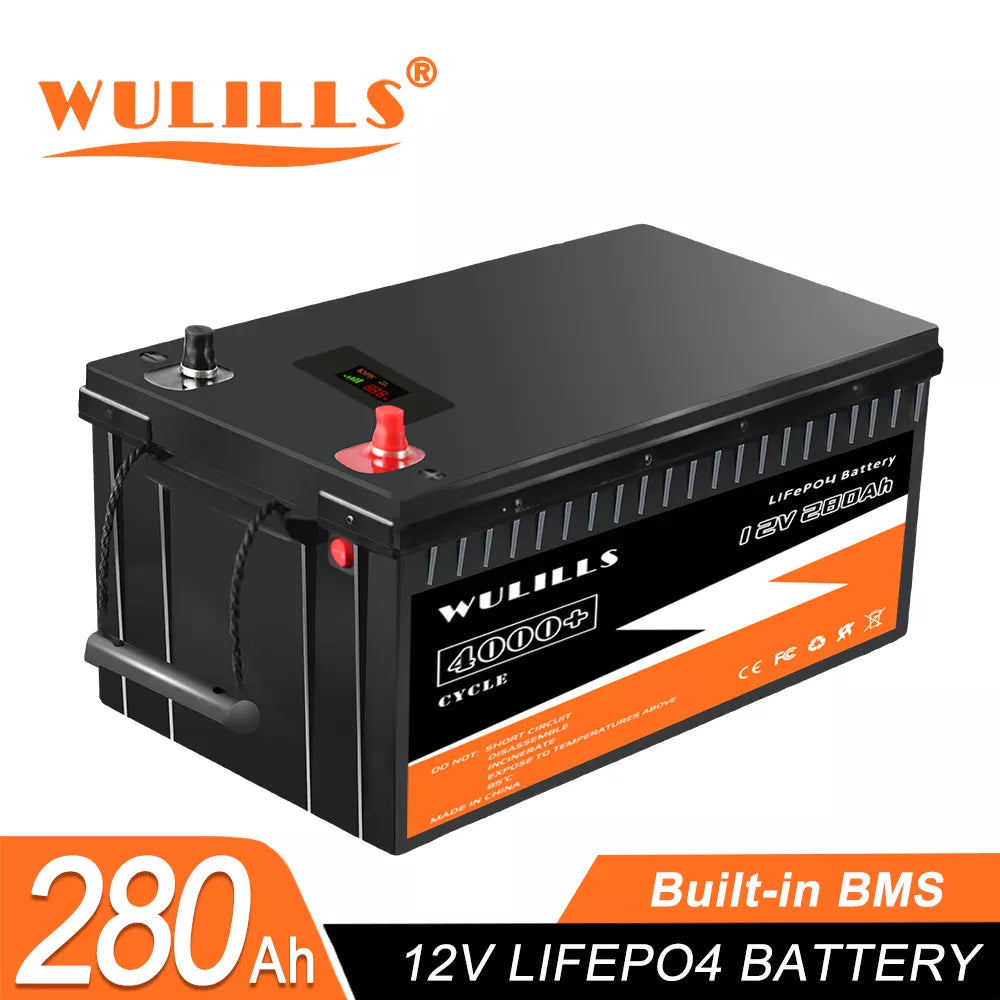

Features 4: 12V 300Ah Lithium Iron Phosphate Battery

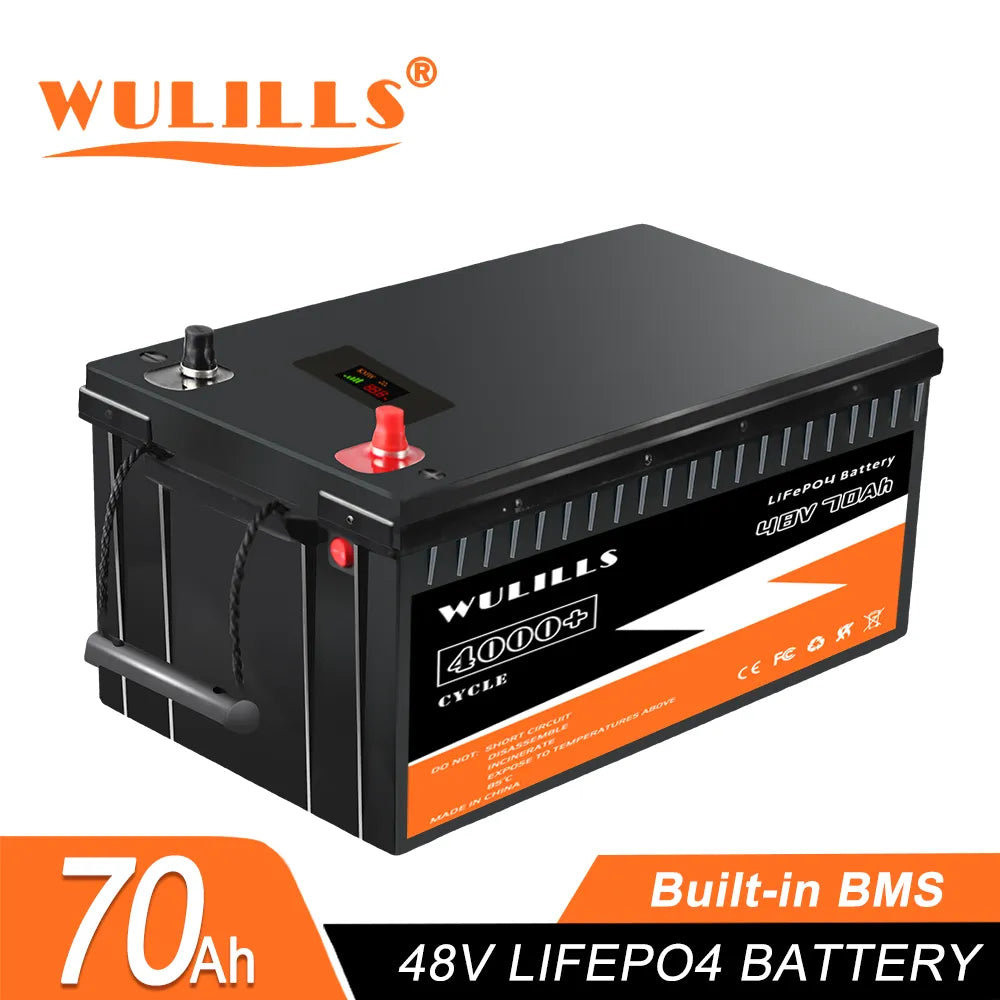

Features 5: 48V 70Ah Lifepo4 battery pack

Features 6: 24V 100Ah LiFePO4 Battery Pack

Features 7: 48V 100Ah LiFePO4 Battery Pack Support 32 Max parallel

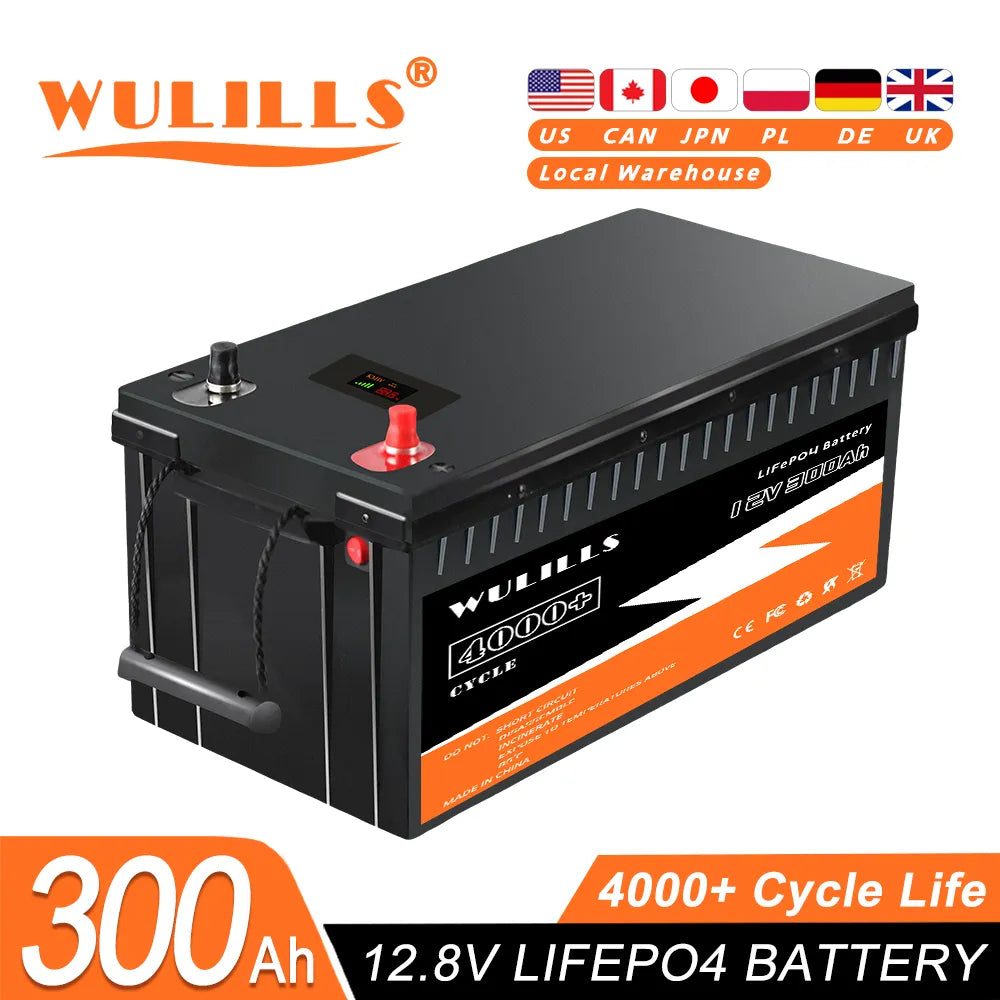

Local warehouse in USA / Canada

Local warehouse
Fast transport
Customs import TAX free

Attention: USA / Canada / Poland / Japan and Russia. If you need fast transpotation. you can contact our customer service before
purchasing.

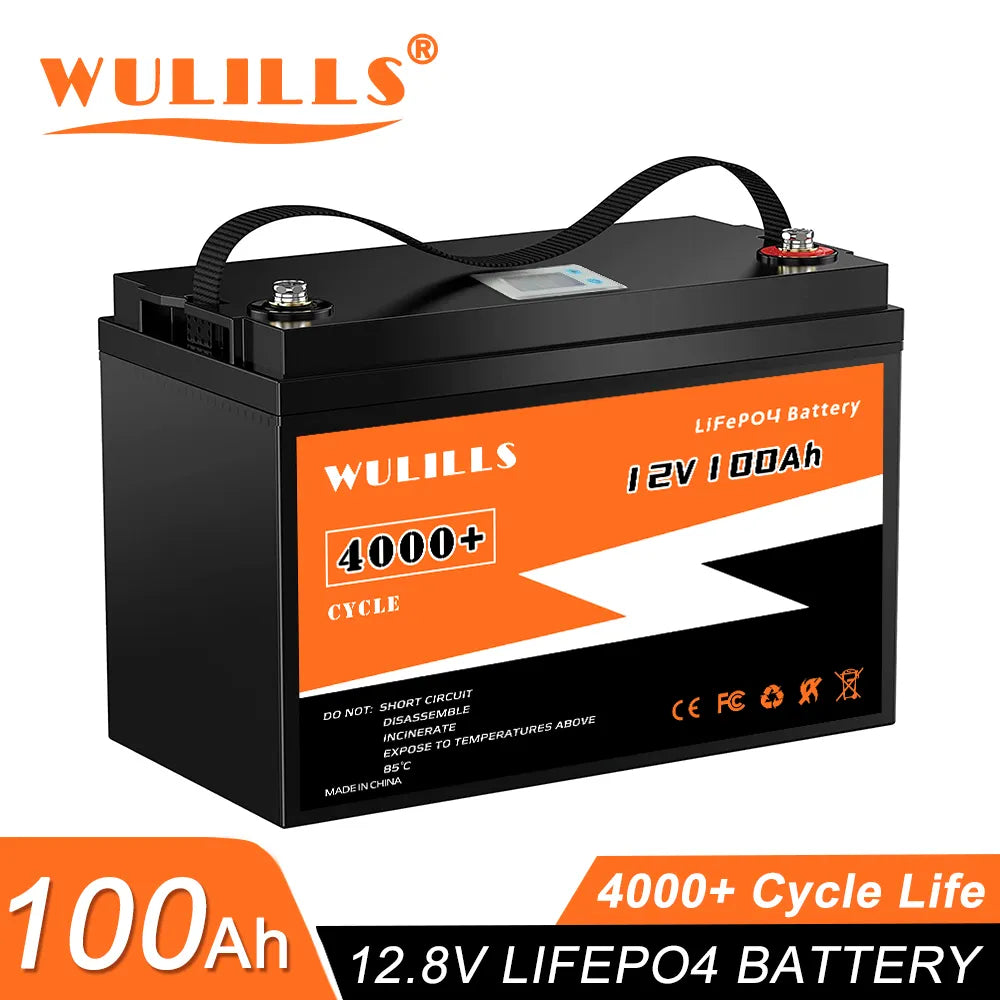

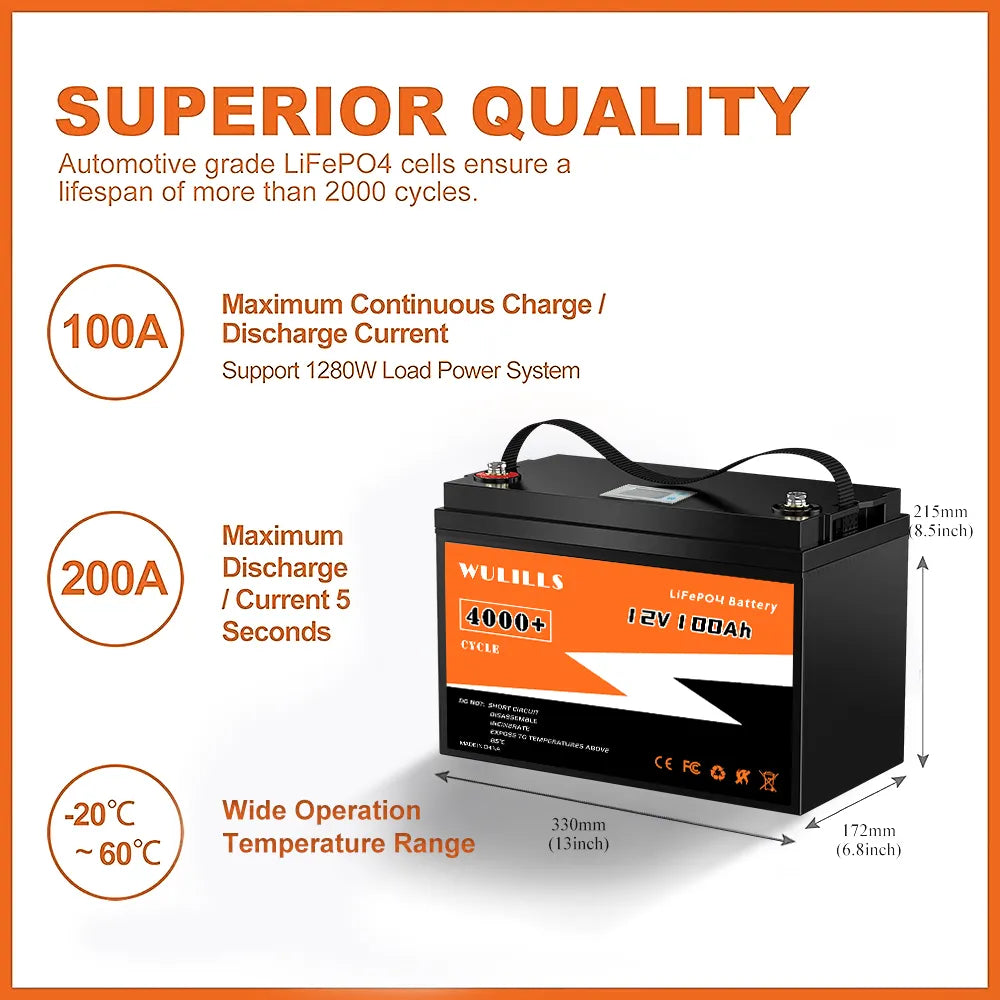

12V 100Ah Lifepo4 Battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah 0.2C

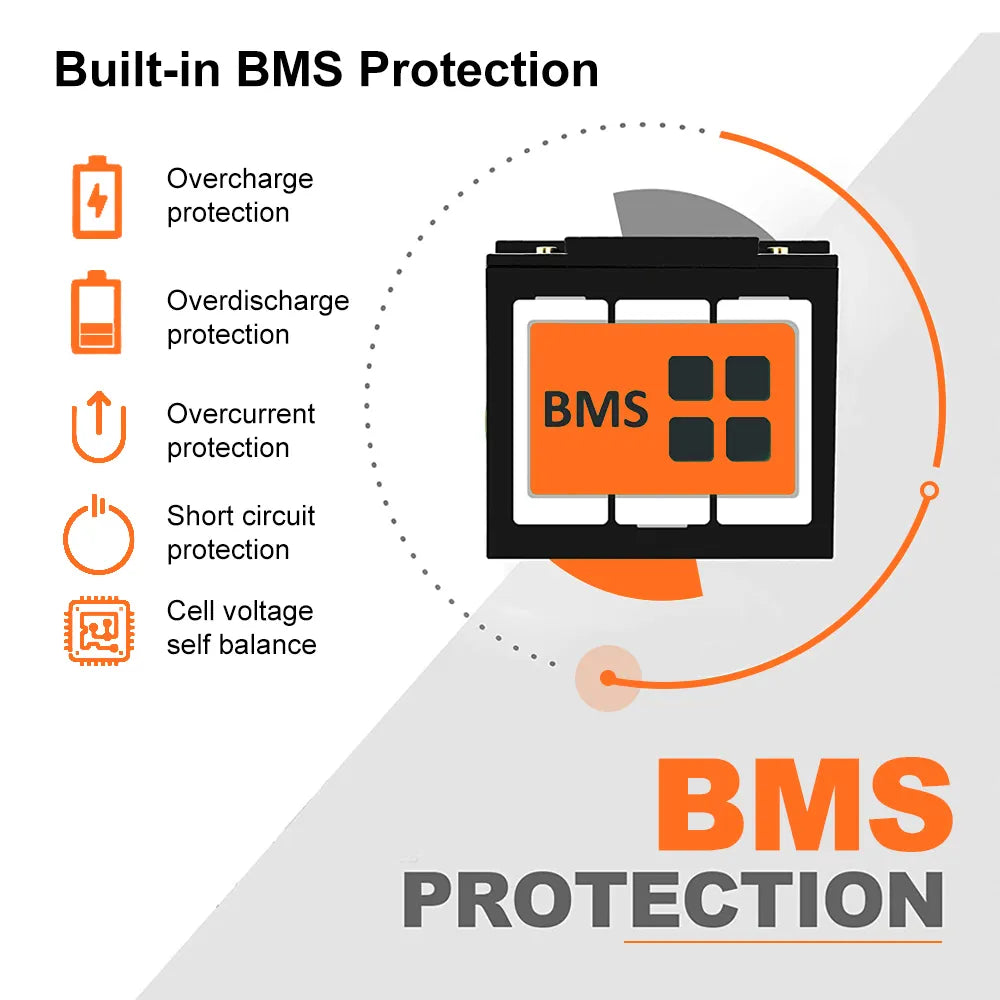

Built-in BMS:4S100A
Energy: 1280Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.

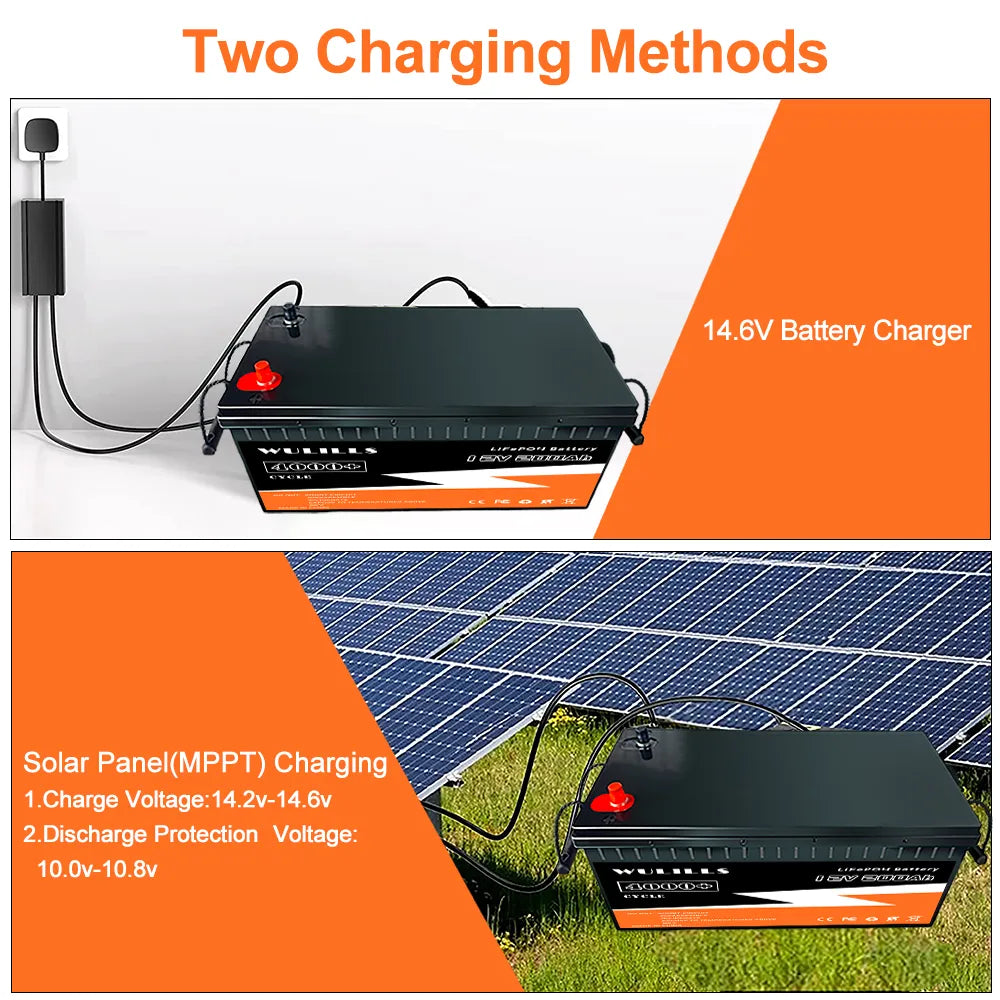

Charge Voltage: 14.6±0.2V
Charger Current: 20A
Max. Charge Current: 50A
Max. Continuous Current: 100A
Max. Pulse Current: 200A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉)
Discharge Temperature: -20 to 60℃ (-4 to 140℉)
Storage Temperature: 0 to 45℃ (32 to 113℉)
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 330*172*215 mm
Weight: Approx. 12kg

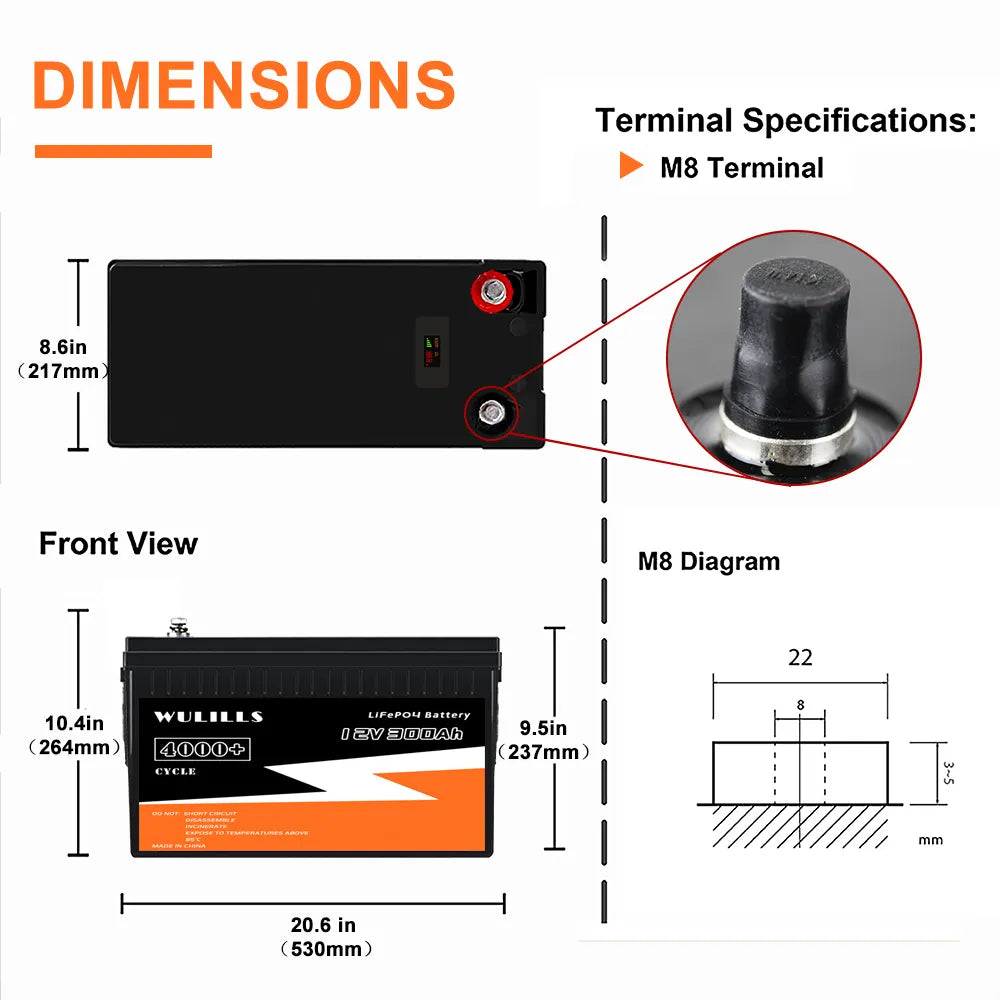

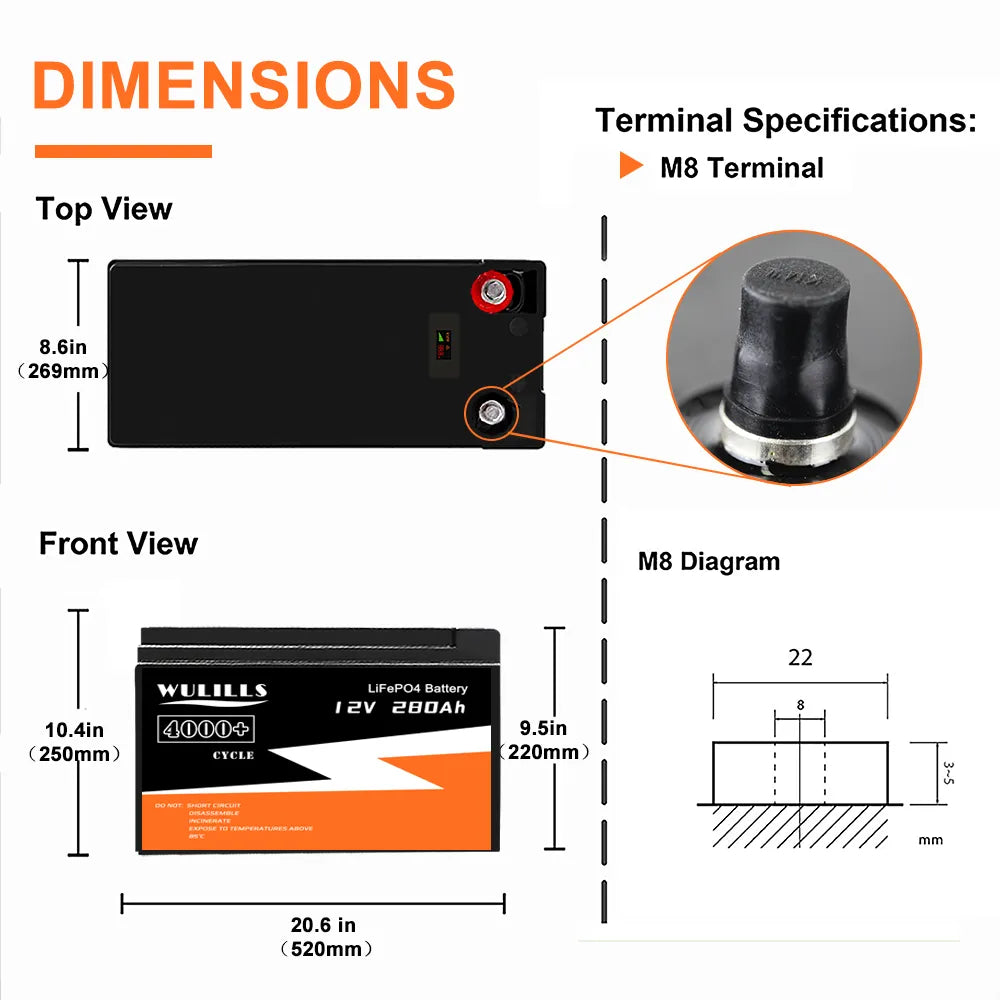

Terminal Type: M8
